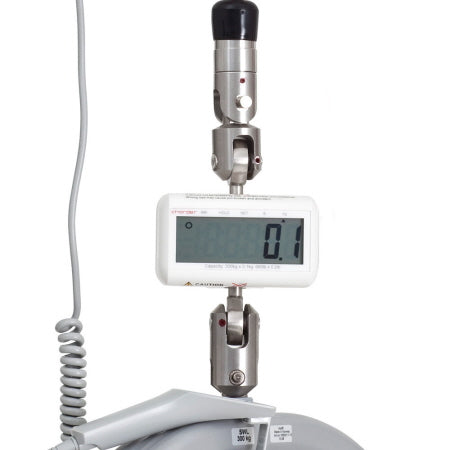

Patient Weight Scale for Molift Air and Mover 180
Molift Weight Scale Update: New Part Numbers for Air 200, 205, 300, 350 & Mover 180
Effective May 2026, the original Molift weight scales below were discontinued and replaced. If you have a saved cart, quote, or purchase order listing an old part number, please update it — the old numbers can no longer be fulfilled.
Part Number Changes
| Ceiling or Floor Lift | Old Scale (Discontinued) | New Scale | Scale SWL |
|---|---|---|---|
| Molift Air 200 / 205 / 300 and Mover 180 |
N1840000 | N1442303 | 300 kg / 661 lbs |
| Molift Air 350 | N1431021 | N1442403 | 400 kg / 881 lbs |
Compatible Sling Bars (Air 200, 205, 300, 350 & Mover 180)
Mover 180 note: The N1442303 scale swivels at both its top and bottom connection points, so a sling bar swivel point isn't required. The Air sling bars below are recommended for Mover 180. Mover-specific sling bars can also be used — it's user preference.
| Part Number | Description | Sling Bar SWL (lbs) |
Width (in) |
|---|---|---|---|
| N2530210 | 4-Point Sling Bar — Small | 771 | 13.8 |
| N2530211 | 4-Point Sling Bar — Medium | 771 | 17.7 |
| N2530212 | 4-Point Sling Bar — Large | 771 | 21.7 |
| N2530213 | 4-Point Sling Bar — X-Large | 771 | 25.6 |
| N2530115 | 2-Point Sling Bar — Small | 771 | 13.78 |
| N2530120 | 2-Point Sling Bar — Medium | 771 | 17.7 |
| N2530125 | 2-Point Sling Bar — Large | 771 | 21.7 |
Important: System Safe Working Load (SWL)
A rail system's SWL is set by its lowest-rated component — motor, trolley, sling bar, sling, or scale — not the highest-rated one.
How to Order
- Choose your lift model — Air 200, 205, 300, 350, or Mover 180.
- Choose the matching weight scale — see the Part Number Changes table above.
- Choose a sling bar — see the Compatible Sling Bars table above.
Quick Answers
Is my old part number (N1840000 or N1431021) still available? No. Both were discontinued in May 2026. Order the matching replacement listed above.
Do Air 350 lifts use different sling bars than Air 200/205/300? No — all four Air models share the same compatible sling bars.
Can I use Air sling bars with my Mover 180? Yes — it's recommended. The N1442303 scale swivels at both its top and bottom connection points, so a sling bar swivel point isn't required. Mover-specific sling bars also work; it's user preference.
