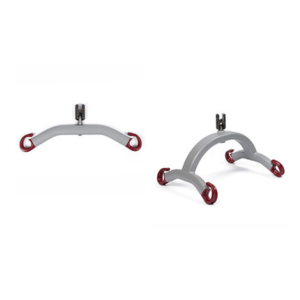

N1401 | Mover 205 Excluding sling bar

Safe working load (SWL) 452 lbs.

The Mover 205, N1401 2nd Generation Floor Lift is available as of January 2026, with enhanced features such as extended battery life, longer service life and easier to use features.

N1401 | Mover 205 Standard model

Mover 205 2nd Generation Brochure

2nd Generation Overview Brochure

Mover 205, Standard model, N1401

Weight of unit (excl. battery) 79.5 lbs. N1401, N1402 (Legacy 83 lbs.)
Weight of unit (excl. battery) 93.5 lbs. N1403 (Legacy 97 lbs.)
Life expectancy increased from 10 to 15 years

New Battery that can charged on the lift, plug lift into wall to charge
Battery Details
-Battery Li-Ion 25.2V, 2.85Ah
-Battery charge time: 3.5 hours (Legacy 4.5 hours)
-Battery capacity: 73.2Wh (Legacy 37.5Wh)
-Life expectancy: 1,700 Charging cycles (Legacy 500)
-Battery weight: 2 lbs. (Legacy 3.1 lbs.)
-Battery 5 year warranty (Legacy is one)
-External charger available

Replacement Products
-N0950251 | BAL50 spare battery (red top battery)
-N0950110 | External charger 100-240V AC

N1860005 | Hand control HB32 Mover 180 -205 - 300 - partner 255
N0950248 | Cable handcontrol HB32/31

N1860118 | Column cable harness
N0950247 | Control box COL50 mounting kit
N0950252 | COL50 spare control box

N0950210 | Front wheel kit ø75 Mover 205- 300 - Partner 255
N0950211 | Rear wheel ø100 w. brake Mover 205- 300 - Partner 255
N0950230 | Actuator kit Mover 205
N0950239 | Spare handle kit Mover 205- 300 - Partner 255
N0950246 | Chassis contact kit Mover 205- 300 - Partner 255
N0950249 | Locking handle kit chassis - Mover 205- 300 - Partner 255
N1320155 | Spare motor, leg opening mechanism_Mover 180 - 205- 300 - Partner 255
N1320510 | Front wheel ø37 Mover 205 Low
N1420530 | Leg adjust Mechanism repair kit without motor - Mover 180 - 205- 300 - Partner 255
N1420540 | Leg adjust Mechanism repair kit with motor - Mover 180 - 205- 300 - Partner 255
N1860116 | CH1 COL50 cable Mover 180 - 205- 300 - Partner 255
N1860117 | CH2 COL50 cable - Mover 180 - 205- 300 - Partner 255

Mover 205 2nd Generation Brochure

2nd Generation Overview Brochure

N14000 | Standard model will be available through January 2026, new part number N1401
N14050 | Low base will be available through August 2025, new part number N1402
N14150 | Standard model, includes support arms will be available throughout 2026, details to follows, new part number N1403

Replacement Battery and Charger for N14000, N14050, N14150
N1341000 | Replacement Battery for Mover 205 | Mover 300 | Partner 255
N1340100 | Battery Charger 12-24V - for N0541000 or N1341000 batteries

Molift Mover 300 User Manual

Molift Mover 205, 300 and Partner 255 Assemble Instructions

Molift Mover 180, 205, and 300 Periodic Inspection Checklist
