Molift Quick Raiser 205 - Adjustable Legs with Knee Support and Foot Inlays | N29100-00

Molift Quick Raiser 205 - Adjustable Legs with Knee Support and Foot Inlays | N29100-00

SKU N29100-00
In Stock
$8,999.97 - $8,999.97
$8,999.97
$8,999.97 - $8,999.97
$8,999.97

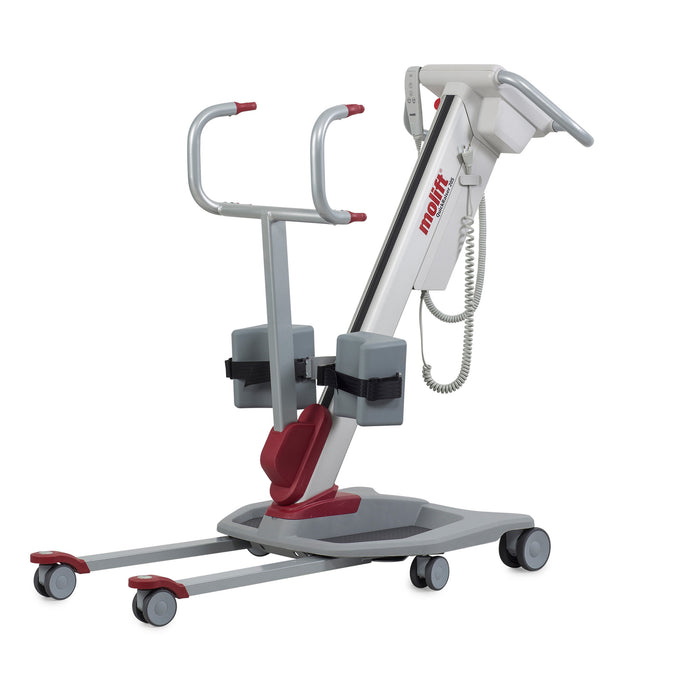

Molift Quick Raiser 205 with adjustable legs

Ergonomic sit-to-stand lift with outstanding transfer capability

The Molift Quick Raiser 205 is a state-of-the-art sit-to-stand lift with outstanding transfer capabilities and exceptional maneuverability. The design encourages a natural movement pattern and fulfils the lifting needs of users with some weight-bearing capacity.

The natural movement pattern
The inclined column encourages a natural movement pattern and fulfils the lifting needs of users up to 452 lbs., with some weight-bearing capacity. The user can feel safe and comfortable in every movement as the lifting experience is the same regardless of the caregiver, lifting arm or sling.

Exceptional maneuverability
Molift Quick Raiser 205 is compact, stable and exceptionally easy to maneuver. The lift has a small turning radius and good maneuverability even in tight spaces, thanks to the unique wheel position, angled push rod and outstanding base weight distribution.

The lift fits under most beds and chairs.

Safe Working Load (SWL) 451 lbs.
Weight of unit 98 lbs.
Legs are electronically adjustable

Overall Height — Highest Position:68 1/8 in. (1,730 mm)
Overall Height — Lowest Position: 44 7/8 in. (1,140 mm)
Width (legs open): 47.6 in. (1210 mm)
Width (legs closed, measured to outside of chassis): 24.8 in. (630 mm)
Depth: 52 in. (1320mm)
Turning Diameter — Legs Closed, or fixed leg model: 45 3/64 in. (1,144 mm)
Turning Diameter — Legs Open, adjustable leg model: 51 3/16 in. (1,300 mm)

Lifting Speed: 1.4 in./sec (35 mm/sec) at 75 kg (165 lbs.) load
Rated Performance: 100 lifts at 75 kg (165 lbs.) and 500 mm (19.7 in.) stroke
Duty Cycle: 10% — max 2 minutes continuous at maximum load; minimum 18 minutes rest after

Protection Class: IP24 — splash resistant; do NOT expose to running water

Battery: 24V, 2.9 Ah — approx. 500 charge cycle life
Charger Input: 100–240 V AC, 50–60 Hz, max 0.35 A (universal voltage)
Charge Time: 5 hours
Charging Restriction: Device will NOT operate while charging. Do not charge in bathrooms or rooms with wet surfaces.
Long-Term Storage: Recharge battery upon receipt and every 6 months to prevent battery failure. Activate emergency stop for storage.

Molift Quick Raiser 205 Brochure

Sit to Stand Selector Guide

Quick Raiser 205 with adjustable legs, 4-point active sling arm, N29100-00. This is our most common model.

Order RgoSling Active for the Quick Raiser 205. The Active sling is specifically designed for the Quick Raiser 205 with a 4-point active sling bar.

Molift RgoSling Active is a padded sling developed for active lifting with Molift Quick Raiser 205. It provides perfect lumbar support and is the ideal sling solution for lifting and moving between different sitting positions.

The RgoSling Active is quickly and easily placed around the user. It has an efficient anti-slip lining to prevent the sling from sliding up the user during transfer. The wide back-support distributes weight and pressure evenly over a large surface, which makes it more comfortable for the user. The waist belt provides additional support and stability. The sliding loops self-adjust to the size of the user and provide additional grip and support around the hips when standing.

For smaller patients, consider the Quick Raiser 205 Elevated Footboard | N2910065

Molift Quick Raiser 205 Brochure

Sit to Stand Selector Guide

Hand Control, 4 buttons, for Quick Raiser 205 w/adjustable legs | N2910010

Cushion For Knee Support Quick Raiser 205 | N0455105

Quick Raiser 205 Knee Kit Cushions - Small | N2910059

Quick Raiser 205 Knee Kit Cushions - Large | N2910056

Quick Raiser 205 Set of inlays for footplate | N2920151

Quick Raiser 205 Knee Assy, dark grey oval pads and bracket, complete | N2910055

Molift Quick Raiser 205 User Manual

Molift Quick Raiser 205 Assemble Instructions

Sit-to-Stand Selection Guide

Product Features

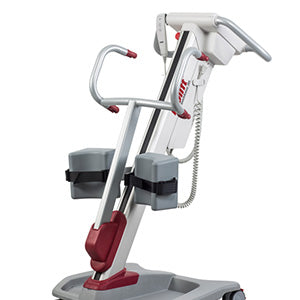

Flexible, Fold-Away Lifting Arm

The lifting arm easily folds toward the column when not in use, reducing user stress and simplifying caregiver handling. This flexible design keeps transfers smooth, safe, and efficient in any care setting.

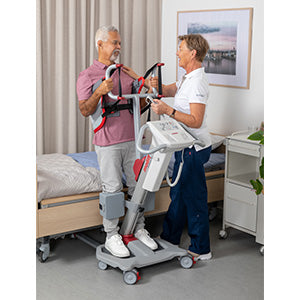

Optimized Accessibility and Positioning

Engineered for maximum reach, the Molift Quick Raiser 205 fits beneath most beds and seating systems.

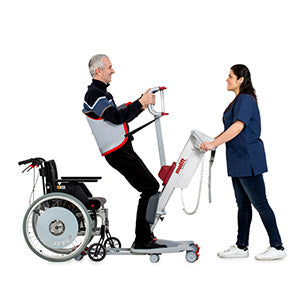

Easy to Maneuver in Tight Spaces

Thoughtfully balanced design and a compact base give the lift a small turning radius, making it easy to steer and position—even in limited spaces. Smooth movement reduces caregiver effort and enhances safety during transfers.

Caregiver ergonomics

Design gives the caregiver room to work with minimized risk of injury.
