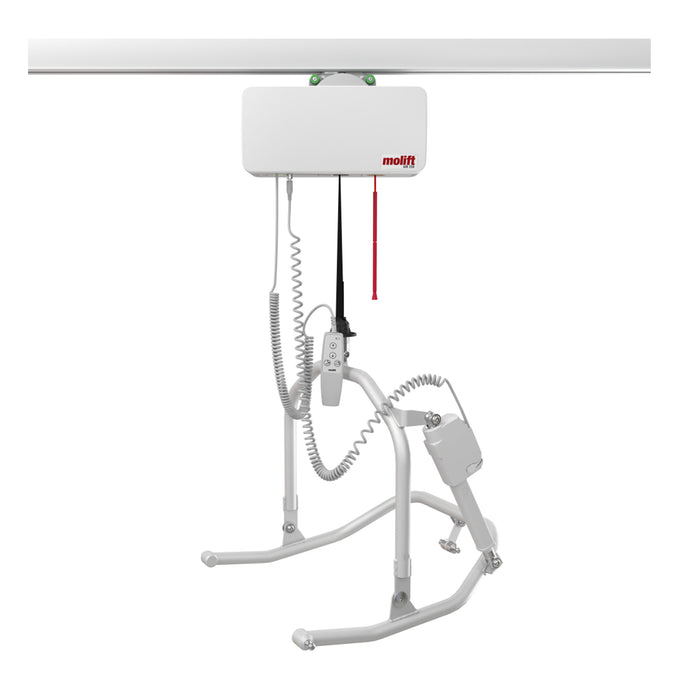

The Molift Air Tilt offers controlled repositioning through its electrically tilting sling bar, reducing physical strain and supporting single‑carer workflows. With precise height and angle adjustment and an open, comfortable design, it creates safer, smoother transfers for both user and caregiver.

The Air Tilt, part number N26355, includes the motor and the tilt bar.  Must purchase High Easy Sling separate.

Key Specifications

Safe Working Load (SWL) 272 kg (600 lbs.)

Weight of unit (excluding hand control and cables): 7.3 kg (16 lbs)

Actuator speed 12.6-10.4mm/second (0.49-0.40 inches/second)

Protection class:

·         Hand control IP24

·         Actuator IPX4

Material: Steel, Plastic

Expected Lifetime: 30,000 cycles SWL or 10 years.

Dimensions:

L x W x H (Length, Width)

66 x 58 x 50-79 cm

(26 x 22.8 x 19.7-33.5 inches)

Tilting Range: 75 degrees
